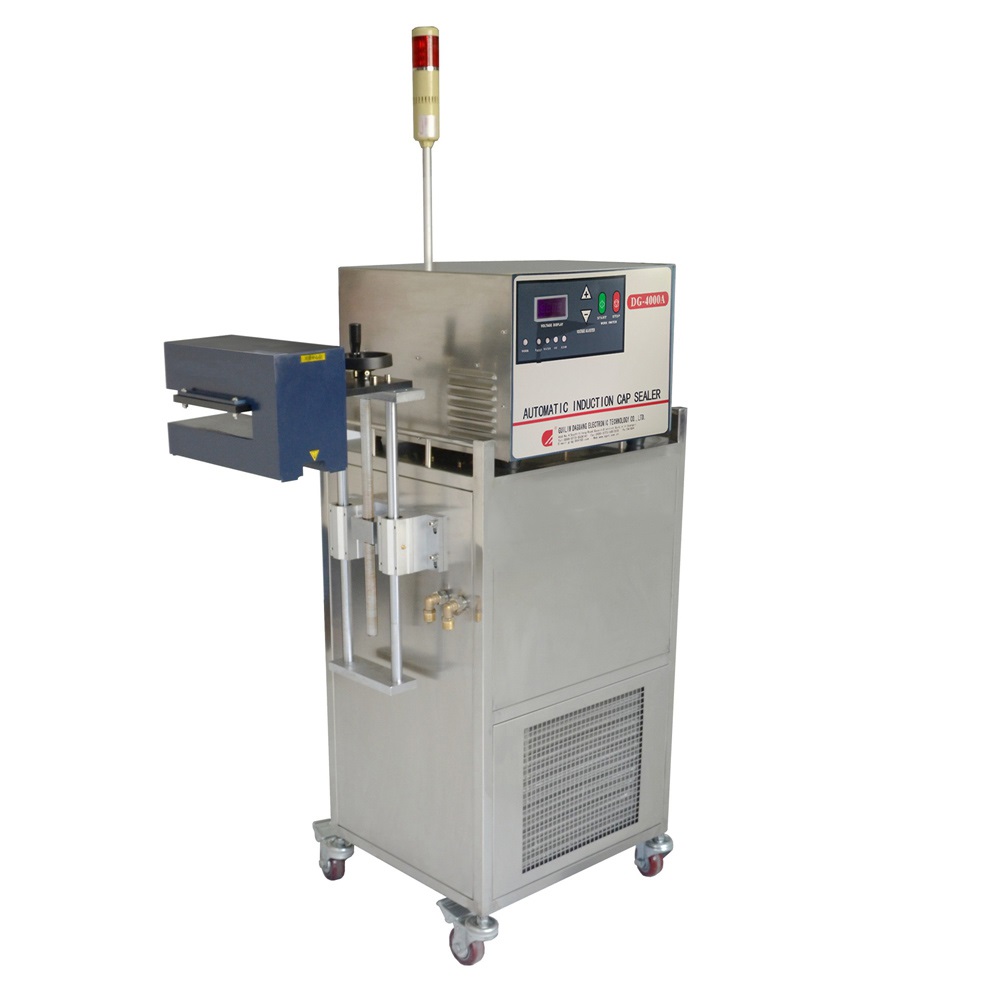

DG-4000A PLUS induction aluminium foil sealer

Automatic cap electromagnetic induction aluminum foil sealing machine takes the electromagnetic induction principle as a basis. The aluminum foil makes bow wave and becomes heat, then the membrane will melt and adhere to the opening of the PE, PET bottles, and then make bottles sealed. The high-stress resistance components are quite reliable and the specification is wide. It can be widely used for the sealing of abnormal bottles and big size mouth bottles. The circulating water makes a cooling, the machine does not touch the bottle's cap just cowling outside while sealing, GMP audit requirement is confirmed.

Main Features
With the unique tunnel design, this kind induction sensor can increase the sealing speed.
Even the flip cap can be sealed perfectly.
According to client demand, the induction sensor can be designed to turn, in order to for different bottle size. Small-cap bottles and large-cap bottles can be sealed by one machine, saving the cost.
Height of the induction sensor is adjustable and flexible for a range of bottle height.
The sensor head with bold copper pipe, ordinary tap water can be used in this machine. moreover, the Built-in water circulation systems can reduce costs
Sealing Fast and efficient. The induction heating foil seals tightly without being affected by moisture, grease or powder contamination on sealing area.
Full modular component design can be against moisture, erosion, dust, and magnetism minimizes maintenance requirements and increases the release.
With the special alarm system, the machine will alarm and display the error code when the tank waterless,  water temperature high, or over current, overload, etc.
With stainless steel body, meet the GMP demand
The induction generator has adopted the latest imported transistor and CPU module control
All functions are marked on the panel clearly. Operation is very convenience
With 4 wheels under the machine body, it is very easy to move and use to flow packing liner.
Can be installed easily.
The induction sensor and generator of the same machine model can be changed. Our machine has got the CE authentication

Main Technical Data
Sealing diameter: 15mm-55mm,or 30mm to 70mm,or 60mm to 140mm (or customized )
Sealing speed: 100-750 bottles per minute
Height of induction head from the ground:760mm to 1800mm(or customized)
Power: 4000Wmax(Adjustable)
Voltage: AC 220V,50/60HZ
Induction head size: 310mm*130mm*190mm
Body material: SUS304 stainless steel
Machine net weight: 76 KGS
Packaging size: 860mm*480mm*620mm/58 KGS
                          & 530mm*690*1070mm/69 KGS
